Eccentric Sanders
| MachineInfoBox Eccentric Sanders | |
|---|---|
| |
| Synonyms: | geared eccentric sanders, random orbital sanders, DE: (Getriebe-)Exzenterschleifer, Handscheibenschleifmaschinen |
| Material: | wood |
| Used with: | sanding discs |
| Access Requirements: | Handheld Sander Introduction |
| Tutors: | Lukas NitramLegov Pakue Lmnl99 Johannes Luzian Keno Sebastian Jakob |
| Similar (More or Less): | belt sander |
An eccentric sander is very useful for finishing surfaces. The major advantage of this kind of sander is the irregular motion of the sanding disc which greatly reduces unsightly marks on the workpiece.
Safety
When using an eccentric sander, always take the time to properly clamp down your workpiece, hook up the shop vac and wear safety glasses. Depending on your material, you may also need a dust mask.
As with all our sanders, please go outside if you can't keep the airborne dust to a minimum!
Suggested Reading
Festo RO 2 E
| MachineInfoBox Festo RO 2 E | |
|---|---|
| |
| Used with: | 150 mm sanding discs with 8 holes |
| Access Requirements: | Handheld Sander Introduction |
| Manual: | bedienungsanleitu.ng |
| Tutors: | Lukas NitramLegov Pakue Lmnl99 Johannes Luzian Keno Sebastian Jakob |
The Festo RO 2 E had a broken switch when we got it, we overrode that and installed a cord switch instead. That means it has no protection against accidental turning on after you plug it in (keine Anlaufsicherung)!
When the foam part of our usual sanding part crumbled away, Keno and Lukas glued its velcro (Klett) sheet to a healthier pad with bad velcro ("Polymer-Klebstoff", XPS scrap piece for even clamping pressure without breaking the disc).
Festo RO 150 E
| MachineInfoBox Festo RO 150 E | |
|---|---|
| |
| Used with: | 150 mm sanding discs with 8 holes |
| Access Requirements: | Handheld Sander Introduction |
| Manual: | nearly identical to Festo RO 2 E (manuall.de) |
| Tutors: | Lukas NitramLegov Pakue Lmnl99 Johannes Luzian Keno Sebastian Jakob |
The Festo RO 150 E needs to be repaired (see #25) before it can be added to the wood workshop. Since the other one is working, this is not overly urgent though.
Bosch GEX 40-150
| MachineInfoBox Bosch GEX 40-150 | |
|---|---|
| |
| Type: | Eccentric Sanders |
| Material: | wood |
| Used with: | 150 mm Sanding Discs |
| Location: | Sanding Area |
| Access Requirements: | Handheld Sander Introduction |
| Status: | Working |
| Manual: | manuall.de |
| Tutors: | Lukas NitramLegov Pakue Lmnl99 Johannes Luzian Keno Sebastian Jakob |
This eccentric sander can use 150 mm sanding discs with many holes (Multiloch).

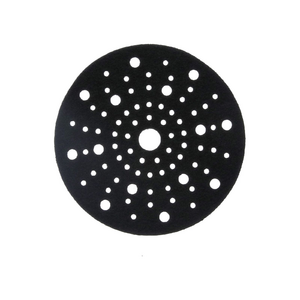

Sanding Disc Protector
The sanding disc protector significantly extends the service life of the backing pad. As a strong protective layer with Velcro fastening, it optimises the adhesion between the sanding disc and the backing pad, especially when working with heavy loads and heavy-duty work. It should be used for normal sanding to protect the backing pad.

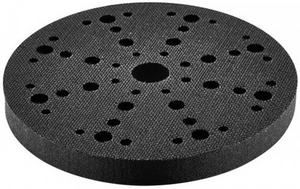

Interface-Pad IP-STF D150/MJ2-15/1
The interface pad has a diameter of 145 mm and a height of 15 mm. It is ideal for sanding work on heavily rounded components, furniture and also for filler sanding during finish sanding. The pad acts as a cushion between the sanding disc and sanding plate, minimising the risk of sanding through edges.
