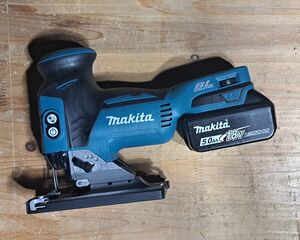

Makita DJV181
| MachineInfoBox Makita DJV181 | |
|---|---|
| |
| Synonyms: | DE:Stichsäge |
| Type: | Jigsaws |
| Location: | Office |
| Access Requirements: | Reciprocating Saw Introduction |
| Status: | In Commissioning |
| Manual: | icmsmakita.eu |
| Tutors: | Lukas Pakue Johannes Luzian Keno Utis Sebastian Baumphil |
This cordless Makita Jigsaw was donated via Bauhaus Bonusprogram.
Key features are:
- three-stage pendulum action
- tool-free blade change.
- Engine speed can be adjusted between 800 and 3 500 min.
- stroke length: 26 mm
- cutting capacity: 135 mm in wood and 10 mm in steel
- can be used with external extraction
- works with T-Shade blades.
To adjust the speed, use the dial at the end of the handle.
| Position | Cutting action | Applications |
|---|---|---|
| 0 | Straight line
cutting action |
For cutting mild steel, stainless steel and plastics. For clean cuts in wood and plywood. |
| I | Small orbit cutting action | For cutting mild steel, aluminum and hard wood. |
| II | Medium orbit cutting action | For cutting wood and plywood. For fast cutting in aluminum and mild steel. |
| III | Large orbit cutting action | For fast cutting in wood and plywood. |
| Workpiece to be cut | Number on adjusting dial |
|---|---|
| Wood | 4 - 6 |
| Mild steel | 3 - 6 |
| Stainless steel | 3 - 4 |
| Aluminum | 3 - 6 |
| Plastics | 1 - 4 |
This tool is not ready for use yet since not all commissioning steps have been completed. The process is also tracked on GitHub. Feel free to contribute to making it usable, any help is very welcome!
| Task | comment | Status |
|---|---|---|
| Name the tool: | - | Done |
| Take a picture | - | Done |
| Find the manual as PDF | https://cdn.axminstertools.com/media/downloads/506274_manual.pdf https://www.icmsmakita.eu/CMS/custom/fi/attachments/user_manuals/User_manuals_EU2/DJV181.pdf --> Directly from Makita Page should (hopefully) be better |
Done |
| Documentation | this page, status: in commissioning | Done |
| Print QR-Code | use the MachineQR Factory | Done |
| Introduction | Jigsaw Introduction needs to be checked for adjustment needs | Done |
| Security Check | to be done or witnessed by a manager | pending |
| Test | to be done or witnessed by a manager | pending |
| tool's name, owner and approx. value | provide to Johannes for inventorization | Done |
| Last step: make it available | physically and in the wiki - then delete this template | pending |
