Accessory: FeatherBoard

ToolInfoBox

FeatherBoard

Synonyms: Federklemme
Status: available
Material: wood
Used with: Router Table, Table Saw

Available as of July 2025 – the Milescraft Dual/Tandem FeatherBoard (M‑1407) is now part of our equipment lineup. Designed for use in the T-slots of our Router Table, this 2‑in‑1 device enhances safety and precision.

🛠 Description & Use-Cases

A versatile feather board that can be used:

  • As two separate units for clamping small or narrow workpieces.
  • Stacked with spacer for holding taller or wider stock securely

📏 Technical Data

  • Length: approx. 200 mm
  • Adjustment range: ~130 mm
  • Includes both 5/8″ and 3/4″ guide/miter bars and T-slot bolts, compatible with our router table and table saw rails

✅ Features & Benefits

  • Flat tension design enables consistent, reliable feed pressure and substantially reduces kick-back risk.
  • Ergonomic knobs allow quick, secure clamping and easy adjustment.
  • Two-in-one functionality: separate units or tandem with spacer — ideal for diverse workpiece sizes

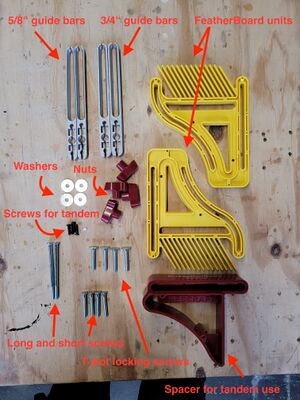

📦 Included Scope

  • 2 × FeatherBoard units
  • 1 × Spacer for tandem use
  • 4 × T-slot locking screws
  • 2 × 5/8″ guide bars
  • 2 × 3/4″ guide bars
  • 2 x long screws for tandem use in u-profile
  • 4 x short screws for single use in u-profiles
  • 4 x black short screws for tandem use (SAFETY FEATURE)

⚠️ Safety & Use Instructions

  • Mount boards so that “fingers” apply light to firm pressure on the workpiece before it enters the bit.
    • correct use.
      correct use.
    • false use!
      false use!
    • Adjust spacing and pressure for smooth movement without pinching.
    • Always verify secure attachment of guide bars and fasteners.

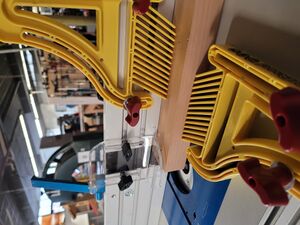

    • Dual use on router table:
      • Tandem use:
        • Only use u-profile guide bars!

        Only use u-profile guide bars for tandem use! Fix the featherboards to the spacer with the 4 black screws!

        📦 Storage

        Store the FeatherBoard next to the Router Table. Please return everything after use. Further accessories (e.g. srews for tandem use, guide bars etc.) can be found in the cabinet behind the router table
