Project:Band Clamps - 'Vario Corner' Replacement
From CoMakingSpace Wiki
| ProjectInfoBox Band Clamps - 'Vario Corner' Replacement | |
|---|---|
| |
| Status: | done |
| Release Date: | 24.06.2026 |
| Initiator: | LabCrow |
| Materials Used: | PETG |
| Tools Used: | 3D Printers |
| Software Used: | Onshape |
Idea
When sorting the Band Clamps and their vario corners there was one less corner than needed. Since this may happen again, or a project may requires more corners, a replacement model would be nice to have
Creation Steps / Process

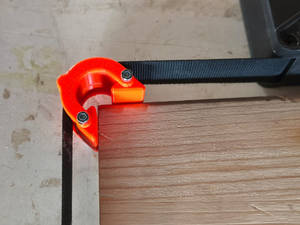

Since the original model was made up of 4 pieces and I couldn't find a way to reduce the amount without compromising the stability through unoptimized printing orientation, this new model also is made up of 4 pieces. The two main parts are glued together and hold together with two M3x40 screws that also connect the two cheeks. Since the screws were a bit too long, I cut them to size and added self-locking nuts.
The model can be found in the Git Hub parts folder or here.
